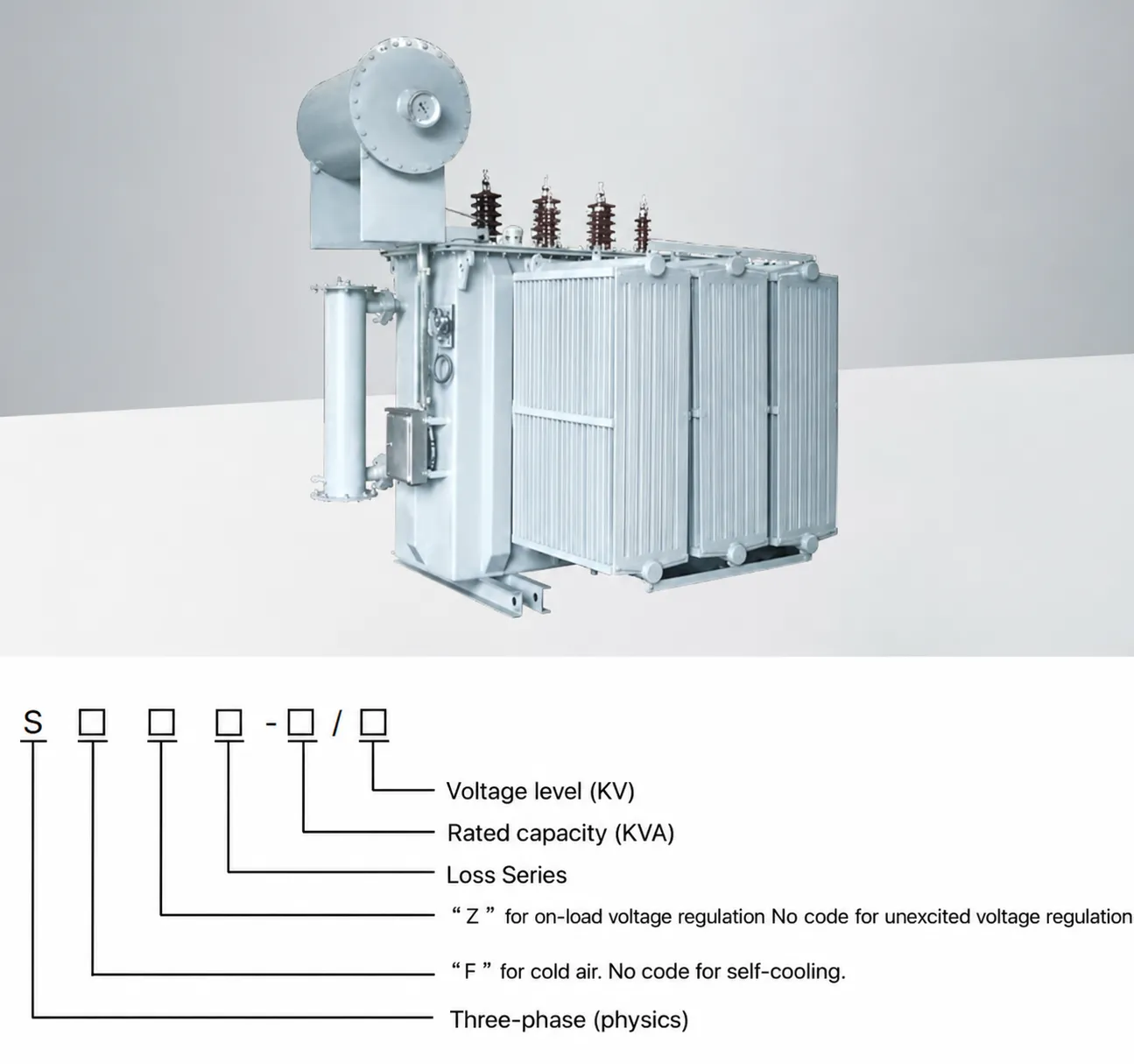

35KV Distribution Transformer
35KV series oil-filled power transformers are more advanced in design, with substantial improvements and enhancements in materials, structure and technology. The high and low voltage clamping parts adopt steel tension band or upper beam and side beam tensioning to form a solid frame structure, which enhances the iron core clamping force and the ability to withstand transportation impact. Strong short-circuit resistance, beautiful appearance and modeling, reliable operation, low loss, low noise, reaching the advanced level of similar foreign products.
Product Overview
35KV series oil-filled power transformers are more advanced in design, with substantial improvements and enhancements in materials, structure and technology. The high and low voltage clamping parts adopt steel tension band or upper beam and side beam tensioning to form a solid frame structure, which enhances the iron core clamping force and the ability to withstand transportation impact. Strong short-circuit resistance, beautiful appearance and modeling, reliable operation, low loss, low noise, reaching the advanced level of similar foreign products.
Implementation Standards
GB 1094.1-2 General Rules for Power Transformers, Temperature Rise of Power Transformers
GB 1094.3 “Insulation level and insulation test of power transformer”.
GB 1094.5 Ability of power transformer to withstand short circuit
GB/T 6451 Technical parameters and requirements for three-phase oil-immersed power transformers.
GB/T 15164 Guidelines for loading oil-immersed power transformers
IEC 76 Power transformers
GB 2536 Transformer oil
GB 20052 Power Transformer Energy Efficiency Limit Values and Efficiency Classes

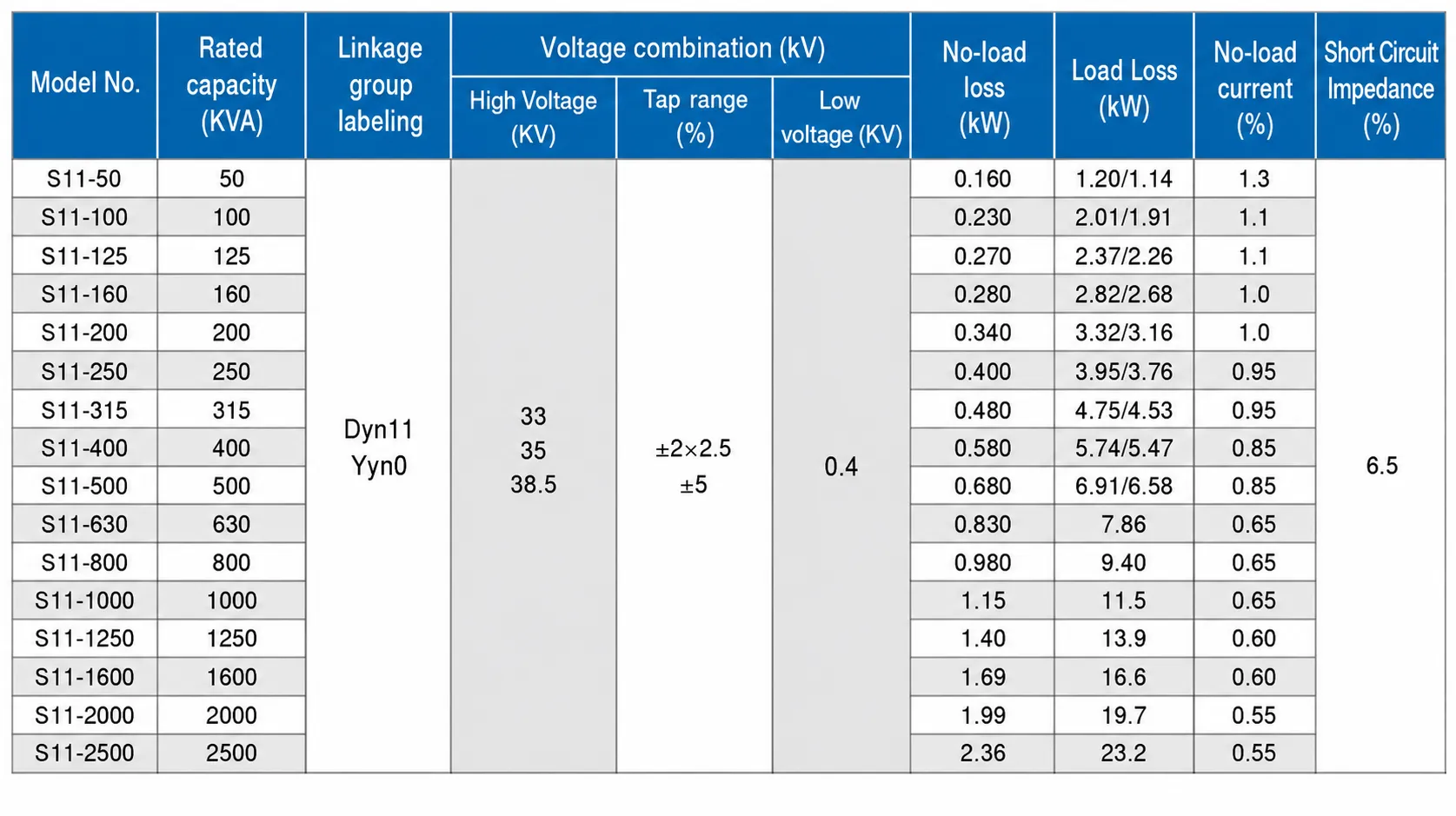

S13、S18、S20、S22、（SZ）35KV class 50KV-a~2500KV-a three-phase double-winding non-excited voltage regulating distribution transformer
Note 1: For transformers with rated capacity of 500KV-A and below, the load loss values above the diagonal line in the table are applicable to Dyn11 coupling group, and the load loss values below the diagonal line are applicable to Yyn0 coupling group.
Note 2: When the annual average load ratio of the transformer is between 30% and 36%, the highest operating efficiency can be obtained by adopting the loss values in the table.
